Cisco CSB GIGABIT 1000BASE-SX LC/SFP TRANSCEIVER F/ SR2024/SR224G EN MGBSX1

COMANDA PRODUSUL TELEFONIC

0726.262.747 • 0344.401.060

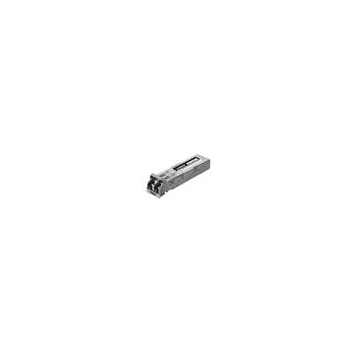

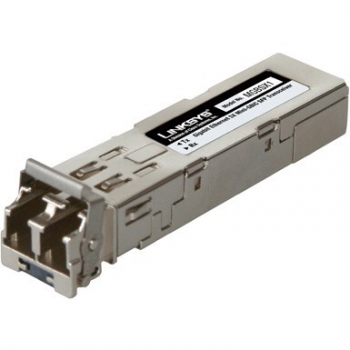

Fotografiile produsului Cisco CSB GIGABIT 1000BASE-SX LC/SFP TRANSCEIVER F/ SR2024/SR224G EN MGBSX1 au caracter informativ si pot contine accesorii neincluse in pachet!

» Scurta descriere

Cisco Gigabit SX Mini-GBIC SFP. Connectivity technology: Wired. Maximum transfer distance: 550 m, Wavelength: 850 nm. Fiber type: MMF

Caracteristici

Connectivity technology	Wired
Maximum transfer distance	550 m
Wavelength	850 nm
Warranty (In Years)	LIFETIME
Operating temperature (T-T)	0 - 40 C
Storage temperature (T-T)	-20 - 70 C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	5 - 90%
Harmonized System (HS) code	85176990
Fiber type	MMF

De la Bocris poti cumpara online Cisco CSB GIGABIT 1000BASE-SX LC/SFP TRANSCEIVER F/ SR2024/SR224G EN MGBSX1.

» Specificatii

Cisco MGBSX1

Porturi:

1 x LC 1000Base-SX

Viteza de transfer:

1 Gbps Gigabit Ethernet

Conectori:

Duplex LC

Lungime de unda (nm):

Wavelength typical (Tx) 850 nm
Wavelength range (Rx) 850 nm

Functii:

Data Networking

Caracteristici speciale:

Compatibility :
SR2024 - 24-Port 10/100/1000 Gigabit Switch
SR224G - 24-Port 10/100 + 1-Port Gigabit Switch + 1 MiniGBIC
SRW2016 - 16-Port 10/100/1000 Gigabit Switch with WebView,
SRW2024 - 24-Port 10/100/1000 Gigabit Switch with WebView
SRW224 - 24-port 10/100 + 2-Port Gigabit Switch with WebView

Distanta maxima (m):

up to 550 m

Altele:

Average output power -9.5 dBm to -4 dBm
Receiver sensitivity -20 dBm (typ)
Receiver overload -0 dBm,
Connectivity Media :
62.5/125 m Multi-mode Fiber
50/125 m Multi-mode Fiber

Dimensiuni (W x D x H mm):

13.4 x 8.5 x 56.5 mm

Greutate (Kg):

0.018 kg

Transceiver Cisco Mgbsx1 Gbps Gigabit Ethernet Minigbic Sfp
