UPS EATON ELLIPSE ECO 650 USB DIN/IN EL650USBDIN

COMANDA PRODUSUL TELEFONIC

0726.262.747 • 0344.401.060

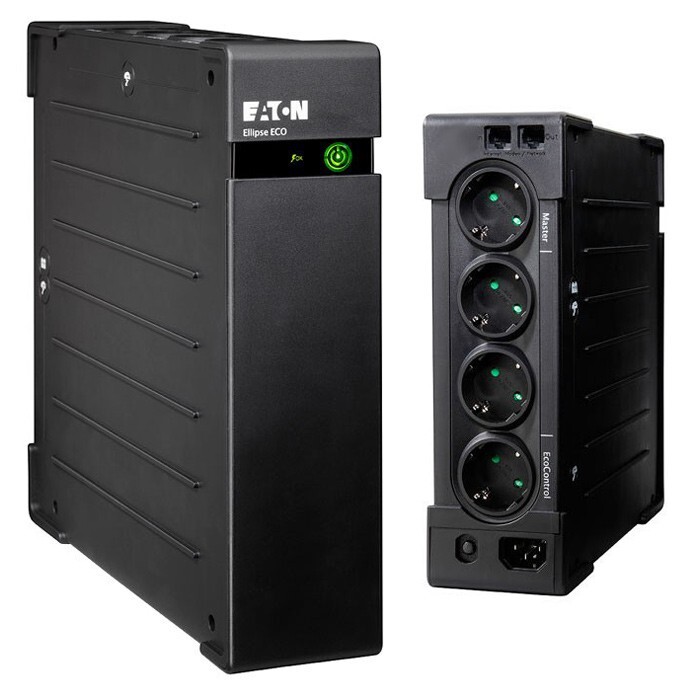

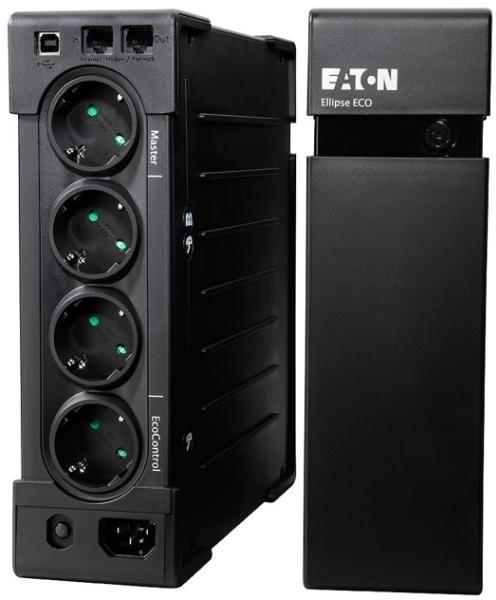

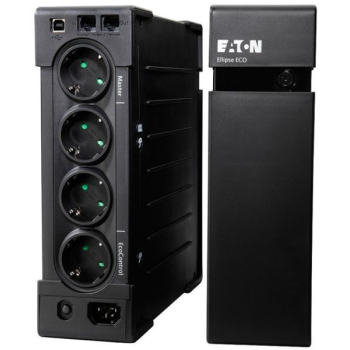

Fotografiile produsului UPS EATON ELLIPSE ECO 650 USB DIN/IN EL650USBDIN au caracter informativ si pot contine accesorii neincluse in pachet!

» Scurta descriere

Eaton Ellipse ECO 650 USB DIN, topologie Offline, functie EcoControl, 650 VA, 400 Watt, intrare IEC-C14, 4 iesiri Schuko (din care 3 cu backup prin baterie, 1 iesire PLC-ready), protectie linii de date RJ11 si RJ45, port USB pentru management, backup 9min@50%, 6min@70% UPS EATON ELLIPSE ECO 650 USB DIN

De la Bocris poti cumpara online UPS EATON ELLIPSE ECO 650 USB DIN/IN EL650USBDIN.

» Specificatii

Eaton EL650USBDIN

General

Configuration

Rack/Tower

Part Number

EL650USBDIN

Color

Black

Rating (VA/Watts)

650/400

EcoControl

Yes up to 20% energy saving (automatic deactivation of idle peripherals)

Dimensions (H x W x D, mm)

263 x 81 x 235

Weight (kg)

3.6

Warranty

2 years warranty, Standard product exchange, including the battery ; warranty for the connected computing equipment for an unlimited amount (EU countries)

Electrical Input

Connection

(1) IEC-320-C14

Input Voltage Range

184 V - 264 V (adjustable to 161 V - 284 V)

Nominal Voltage

230 V

Operating Frequency

50-60 Hz autoselect

Electrical Output

Voltages

230 V (adjustable to 220 V, 230 V, 240 V)

Output Receptacles

(3) Schuko(1) Schuko surge only

PowerLine compatibility

1 PLC-ready outlet

Battery

Battery Type

Replaceable sealed lead acid

Battery Replacement Indicators

LED + audible alarm

Battery Test

Yes (Automatic)

Cold start (No mains power)

Yes

Deep Discharge Protection

4 hours

Communications

Communication Ports

USB port ( cable supplied)

Power Management Software

Eaton Intelligent Power software delivered as standard (compatible with: Windows 7/Vista/XP, Mac OS X, Linux)

Environmental & Standards

Surge Protection

Surge protection device compliant with IEC 61643-1

Performance - Safety - EMC

IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark

Data Line Protection

Tel/Fax/Modem/Internet and Ethernet
