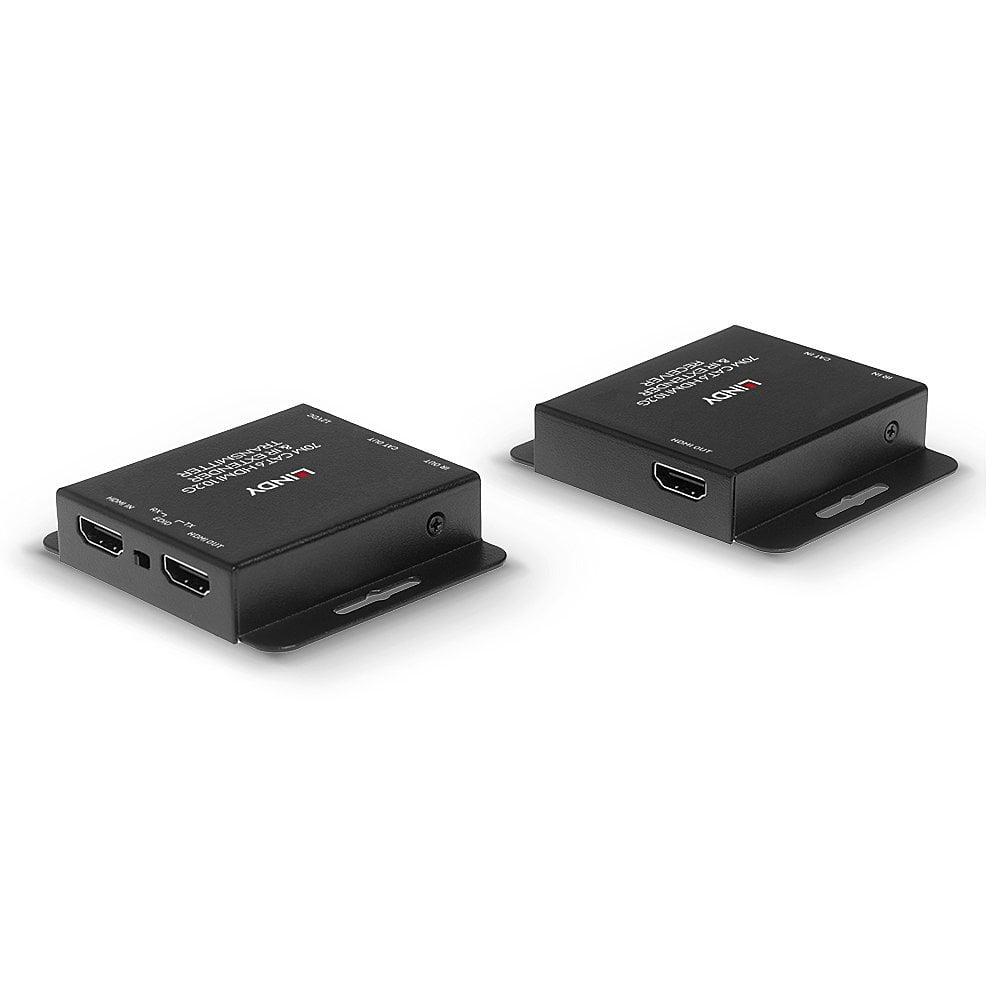

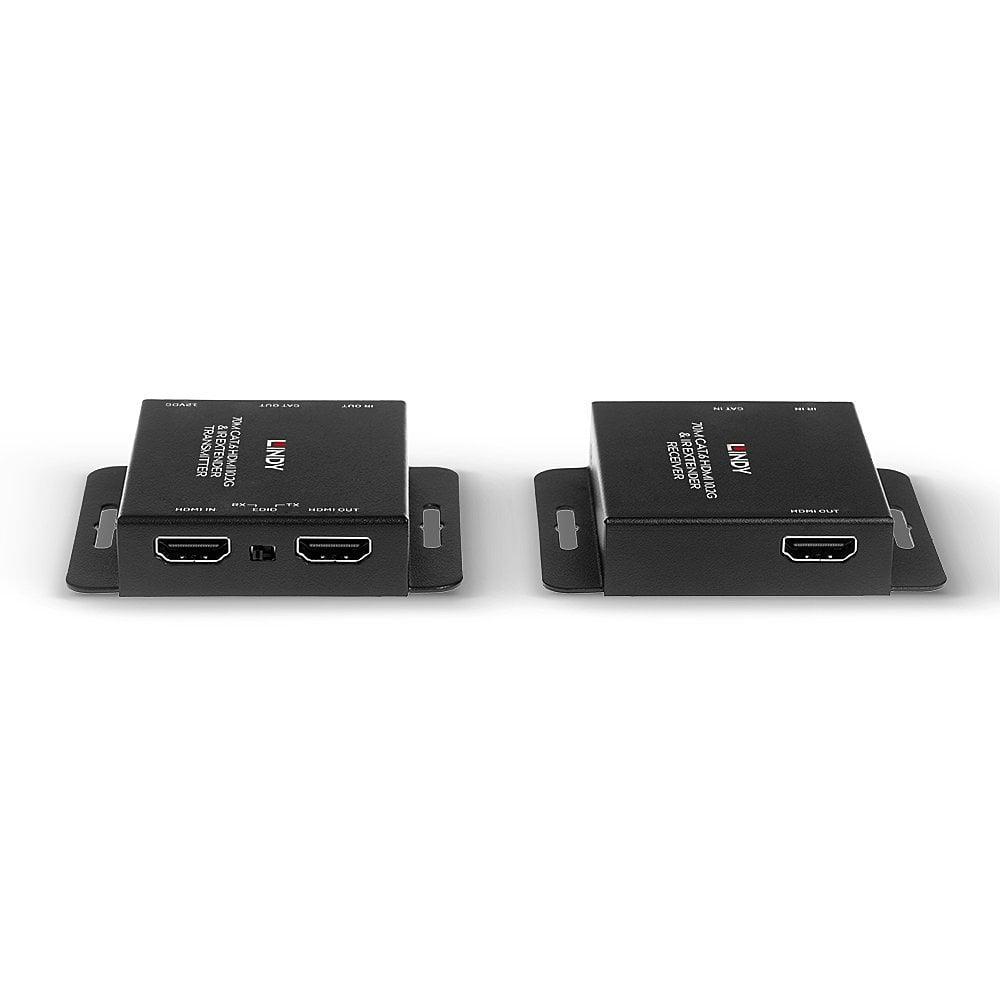

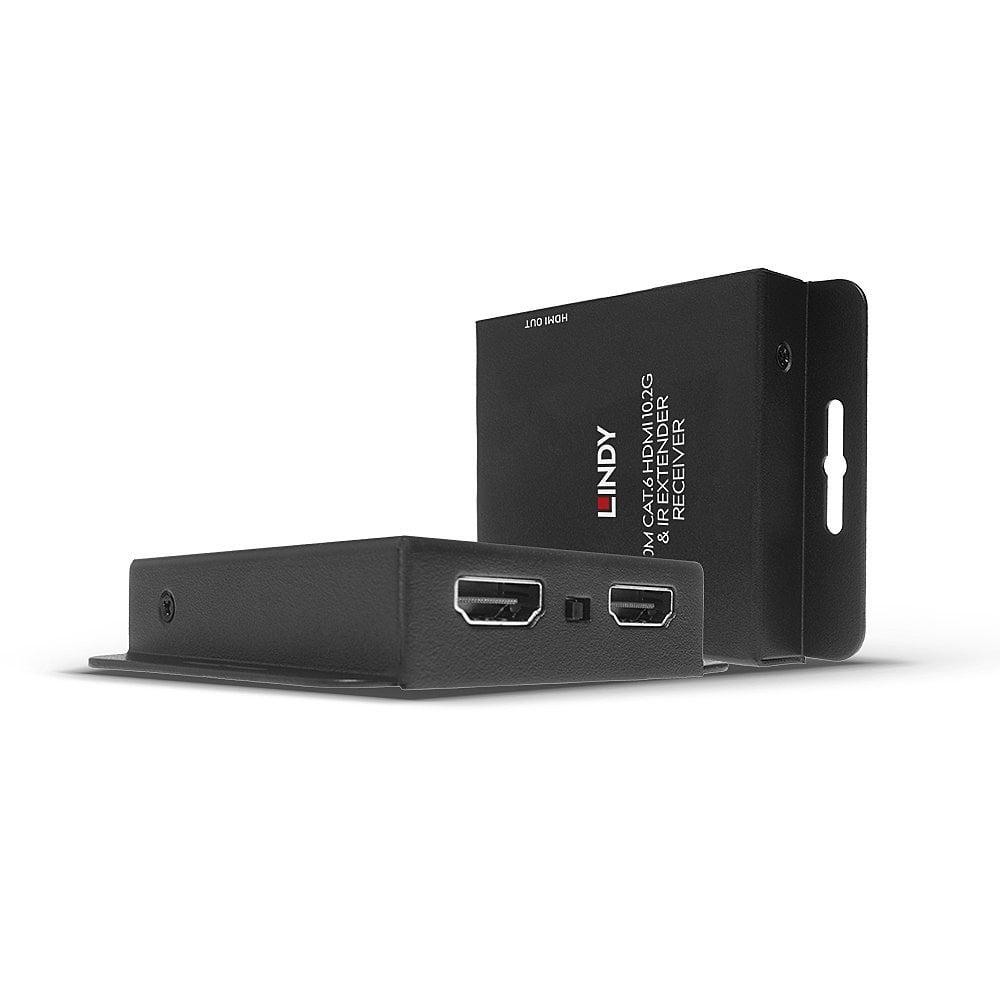

Adaptor Lindy 70m Cat.6 HDMI & IR Extender LY-38208

Lindy 50m Cat.6 HDMI & IR Extender with Loop Out Description Extends HDMI & IR Signals up to 70m using a single Cat.6 Cable Supports resolutions up to 3840x2160@30Hz 4:4:4 8bit Features a loop-through HDMI output on the Transmitter for local monitoring Supports power over Cable, only a single power supply is required Technical details Specifications AV Interface: HDMI Interface Standard: HDMI 1.4 Supported Bandwidth: 10.2Gbps Maximum Distance: 70m (229.66ft) - 1920x1080@60Hz, 40m (131.23ft) - 3840x2160@30Hz 4:4:4 8bit Maximum Resolution: 3840x2160@30Hz 4:4:4 8bit HDCP Support: HDCP 1.4 EDID Pass Through: EDID Copy Functionality Supported Audio: Up to 7.1 (Pass-through) Separate Audio Ports: - IR Support: 20-60kHz CEC Support: - Serial Interface: - Transmission Protocol: - Transmission Medium: 1 x Cat.6 Laser Class (only for Fibre): - Wavelength (only for Fibre): - Chipset: GSV1001 Special Features: PoC (Power over Cable), IR Pass-through, Loop Out Connectors Transmitter Input: HDMI Type A (Female) Transmitter Output: HDMI Type A (Female), RJ-45 (Female), IR (Female) Receiver Input: RJ-45 (Female), IR (Female) Receiver Output: HDMI Type A (Female) Bi-directional Ports: - Power : 5.5/2.1mm Physical Properties Dimensions (approx.) WxDxH: 79.5x16.5x69mm (3.13x0.65x2.72in) Housing Material: Metal Net Weight: 0.13kg (0.29lb) per unit Operating Temperature : 0°C - 40°C (32°F - 104°F) Storage Temperature: -20°C - 60°C (-4°F - 140°F) Humidity: 20 – 90% RH (no condensation) Power Requirements: 12VDC 1A Colour: Black Miscellaneous Packaging Type: Carton Box Packaging Dimensions: 200x70x113mm (7.87x2.76x4.45in) Gross Weight: 0.414kg (0.91lb) Warranty (Years): 2 Certificated: CE, FCC, RoHS, REACH & California Proposition 65 Package Contents Transmitter Receiver Multi-country Power Supply (UK, EU, US & AUS) IR Transmitter IR Receiver Lindy Manual https://www.lindy-international.com/70m-Cat-6-HDMI-4K30-IR-Extender- with-PoC-Loop-Out-.htm?websale8=ld0101.ld021102&pi=38208 &ci=20

De la Bocris poti cumpara online Adaptor Lindy 70m Cat.6 HDMI & IR Extender LY-38208 la pretul de 444,89 lei, precum si alte Adaptoare/Conectica ieftine.

Lindy LY-38208

Lindy 50m Cat.6 HDMI & IR Extender with Loop Out Description Extends HDMI & IR Signals up to 70m using a single Cat.6 Cable Supports resolutions up to 3840x2160@30Hz 4:4:4 8bit Features a loop-through HDMI output on the Transmitter for local monitoring Supports power over Cable, only a single power supply is required Technical details Specifications AV Interface: HDMI Interface Standard: HDMI 1.4 Supported Bandwidth: 10.2Gbps Maximum Distance: 70m (229.66ft) - 1920x1080@60Hz, 40m (131.23ft) - 3840x2160@30Hz 4:4:4 8bit Maximum Resolution: 3840x2160@30Hz 4:4:4 8bit HDCP Support: HDCP 1.4 EDID Pass Through: EDID Copy Functionality Supported Audio: Up to 7.1 (Pass-through) Separate Audio Ports: - IR Support: 20-60kHz CEC Support: - Serial Interface: - Transmission Protocol: - Transmission Medium: 1 x Cat.6 Laser Class (only for Fibre): - Wavelength (only for Fibre): - Chipset: GSV1001 Special Features: PoC (Power over Cable), IR Pass-through, Loop Out Connectors Transmitter Input: HDMI Type A (Female) Transmitter Output: HDMI Type A (Female), RJ-45 (Female), IR (Female) Receiver Input: RJ-45 (Female), IR (Female) Receiver Output: HDMI Type A (Female) Bi-directional Ports: - Power : 5.5/2.1mm Physical Properties Dimensions (approx.) WxDxH: 79.5x16.5x69mm (3.13x0.65x2.72in) Housing Material: Metal Net Weight: 0.13kg (0.29lb) per unit Operating Temperature : 0C - 40C (32F - 104F) Storage Temperature: -20C - 60C (-4F - 140F) Humidity: 20 90% RH (no condensation) Power Requirements: 12VDC 1A Colour: Black Miscellaneous Packaging Type: Carton Box Packaging Dimensions: 200x70x113mm (7.87x2.76x4.45in) Gross Weight: 0.414kg (0.91lb) Warranty (Years): 2 Certificated: CE, FCC, RoHS, REACH & California Proposition 65 Package Contents Transmitter Receiver Multi-country Power Supply (UK, EU, US & AUS) IR Transmitter IR Receiver Lindy Manual https://www.lindy-international.com/70m-Cat-6-HDMI-4K30-IR-Extender- with-PoC-Loop-Out-.htm?websale8=ld0101.ld021102&pi=38208 &ci=20
