DVR Hikvision DS-7104HGHI-SH 4 Canale

Catalog Produse

COMANDA PRODUSUL TELEFONIC

0726.262.747 • 0344.401.060

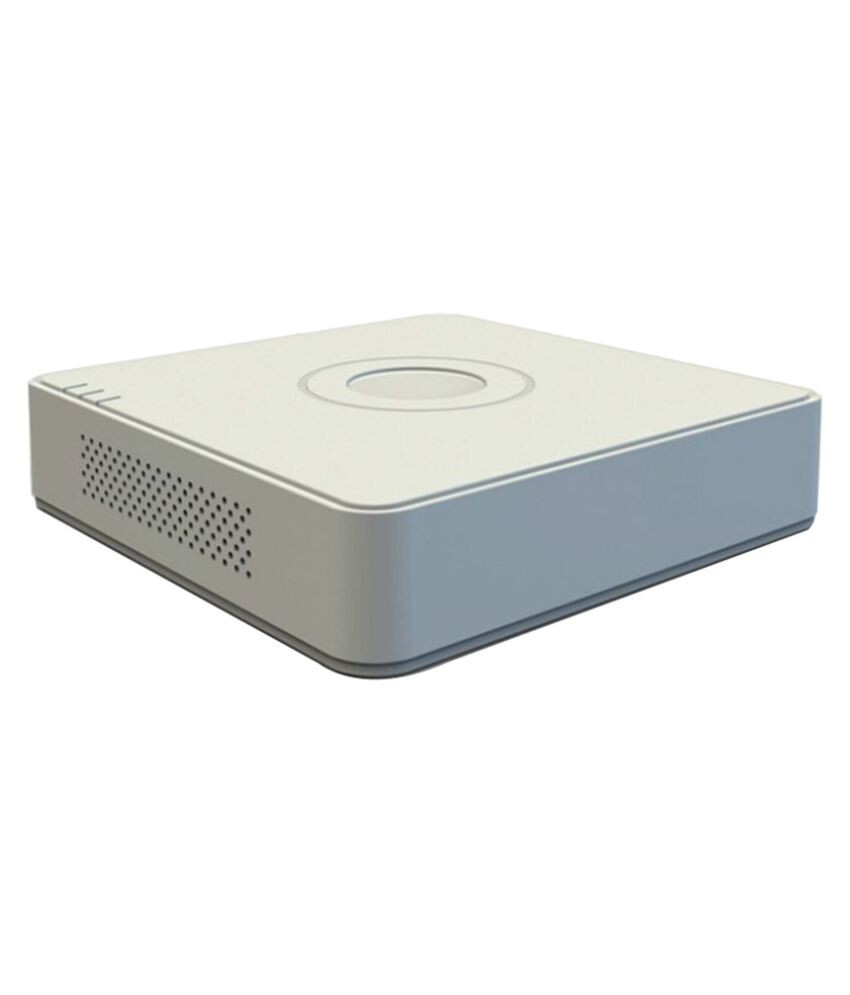

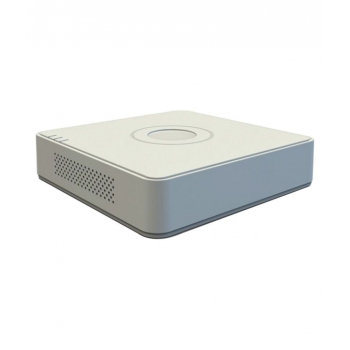

Fotografiile produsului DVR Hikvision DS-7108HGHI-SH au caracter informativ si pot contine accesorii neincluse in pachet!

Hikvision DS-7108HGHI-SH

DVR Hikvision DS-7108HGHI-SH 8 Canale

Video/Audio Input
Audio Input:	\|	1-ch
Video Compression:	\|	H.264
Analog and HD-TVI video input:	\|	8-ch BNC interface (1.0Vp-p, 75 Î©)
Supported camera types:	\|	720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS
Audio Compression:	\|	G.711u
Audio Input Interface:	\|	RCA (2.0 Vp-p, 1 kÎ©)
Two-way Audio:	\|	1-ch, RCA (2.0 Vp-p, 1 KÎ©) (using audio input)
Video/Audio Output
HDMI/VGA Output:	\|	1920 Ã— 1080 / 60 Hz,1280 Ã— 1024 / 60 Hz, 1280 Ã— 720 / 60 Hz, 1024 Ã— 768 / 60 Hz
Recording resolution:	\|	Main stream: 1080P (non-real-time) / 720P / WD1/ VGA / 4CIF / CIF;Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA
Frame Rate:	\|	Main stream: 1/16 fps ~ Real time frame rate Sub-stream: 1/16 fps ~ Real time frame rate
Video Bit Rate:	\|	32 Kbps-6 Mbps
Stream Type:	\|	Video/Video&Audio
Two-way Audio:	\|	1-ch, RCA (2.0 Vp-p, 1 kÎ©) (using the audio input)
Audio Output:	\|	1-ch RCA(Linear, 1kÎ©)
Audio Bit Rate:	\|	64kbps
Dual Stream:	\|	Support
Synchronous Playback:	\|	8-ch
Network management
Remote connections:	\|	128
Network protocols:	\|	TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnPâ„¢, HTTPS
Hard Disk Driver
Interface Type:	\|	1 SATA Interface
Capacity:	\|	Up to 4TB capacity for each disk
External Interface
Network Interface:	\|	1; 10M / 100M self-adaptive Ethernet interface
USB Interface:	\|	2 USB 2.0 Interfaces
General
Power Supply:	\|	12V DC
Consumption:	\|	â‰¤ 15W(without hard disks)
Working Temperature:	\|	-10 ÂºC ~+55 ÂºC (14 ÂºF ~ 131 ÂºF)
Working Humidity:	\|	10% ~ 90%
Dimensions:	\|	280 Ã— 210 Ã— 45mm (11 Ã— 8.3 Ã— 1.8 inch)
Weight:	\|	â‰¤ 0.8 kg / 1.8lb(without hard disks)

Video/Audio Input

Audio Input:

1-ch

Video Compression:

H.264

Analog and HD-TVI video input:

8-ch BNC interface (1.0Vp-p, 75 Î©)

Supported camera types:

720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS

Audio Compression:

G.711u

Audio Input Interface:

RCA (2.0 Vp-p, 1 kÎ©)

Two-way Audio:

1-ch, RCA (2.0 Vp-p, 1 KÎ©) (using audio input)

Video/Audio Output

HDMI/VGA Output:

1920 Ã— 1080 / 60 Hz,1280 Ã— 1024 / 60 Hz, 1280 Ã— 720 / 60 Hz, 1024 Ã— 768 / 60 Hz

Recording resolution:

Main stream: 1080P (non-real-time) / 720P / WD1/ VGA / 4CIF / CIF;Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA

Frame Rate:

Main stream: 1/16 fps ~ Real time frame rate
Sub-stream: 1/16 fps ~ Real time frame rate

Video Bit Rate:

32 Kbps-6 Mbps

Stream Type:

Video/Video&Audio

Two-way Audio:

1-ch, RCA (2.0 Vp-p, 1 kÎ©) (using the audio input)

Audio Output:

1-ch RCA(Linear, 1kÎ©)

Audio Bit Rate:

64kbps

Dual Stream:

Support

Synchronous Playback:

8-ch

Network management

Remote connections:

128

Network protocols:

TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnPâ„¢, HTTPS

Hard Disk Driver

Interface Type:

1 SATA Interface

Capacity:

Up to 4TB capacity for each disk

External Interface

Network Interface:

1; 10M / 100M self-adaptive Ethernet interface

USB Interface:

2 USB 2.0 Interfaces

General

Power Supply:

12V DC

Consumption:

â‰¤ 15W(without hard disks)

Working Temperature:

-10 ÂºC ~+55 ÂºC (14 ÂºF ~ 131 ÂºF)

Working Humidity:

10% ~ 90%

Dimensions:

280 Ã— 210 Ã— 45mm
(11 Ã— 8.3 Ã— 1.8 inch)

Weight:

â‰¤ 0.8 kg / 1.8lb(without hard disks)
