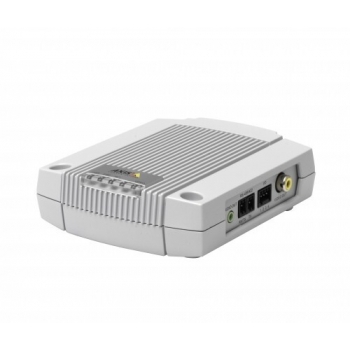

Decodor Video Axis P7701 0319-002 Standard de compresie H.264, MPEG-4, Motion JPEG Conectori: RCA/DVI, RJ-45 10BASE-T/100BASE-TX PoE 0319-002

Decodor Video

Video compression :H.264 (MPEG-4 Part 10/AVC, Baseline profile) MPEG-4 Part 2 Motion JPEG
Resolutions :H.264 and MPEG-4 Part 2: All resolutions up to D1 (720x480 NTSC, 720x576 PAL) Motion JPEG: All resolutions up to 720p (1280x720),
Frame rate :30/25 (NTSC/PAL) fps in up to D1 resolution for all compression standards. Up to 15 fps in 720p resolution in Motion JPEG
Video streaming One stream,
Video output :NTSC 720x480, PAL 720x576 VGA (60/75 Hz) 640x480 S-VGA (60/75 Hz) 800x600 HDTV 720p 1280x720
Serial commands Forwarding of serial commands,
Audio
Audio streaming One way
Audio compression AAC-LC 8 kHz 32 kbit/s, 16 kHz 64 kbit/s (AAC audio included in a later firmware release) G.711 PCM 8 kHz 64 kbit/s G.726 ADPCM 8 kHz 32 or 24 kbit/s,
Audio input/ output Line output
Security Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1X network access control, digest authentication, user access log,
Supported protocols IPv4/v6, HTTP, HTTPS*, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SSL/TLS,
Alarm triggers VAPIX alarm API
Alarm events Notification via email
Casing Metal casing. Standalone or wall mount
Processor and memory TI DM6443, 128 MB RAM, 128 MB Flash,
Power 8-20 V DC, max. 8.3 W Power over Ethernet IEEE 802.3af Class 3
Connectors :
RCA composite video output
DVI-I (digital and analog) output
RJ-45 10BASE-T/100BASE-TX PoE,
DC terminal block: power in 8-20 V DC, max. 8.3 W,
DC terminal block: power in 8-20 V DC, max. 8.3 W,
RS-485/ RS-422 terminal block
3.5 mm audio line output, mono

118 xx 99 x 33 mm

318 g
